High-end Series Vision Controller
HC-SYS232IV-24S
Intel® Core™ i5-8500 machine vision computer with vision-specific I/O, real-time control
Combining embedded PC technology, expanded functionality, optimized size, and robust construction, MSTAR TECHNOLOGIES' vision controllers are ideal for manufacturing facilities. These industrial computing platforms deliver desktop-level performance, easily monitoring one or multiple production lines. When paired with additional boards, they offer versatile options for image acquisition, network interfaces, processing offloading, and acceleration. Our advanced vision controller technology supports high-speed imaging for single or multi-camera installations, ensuring efficient, reliable operations.
Features
Intel® Core™ i5-8500 Processor

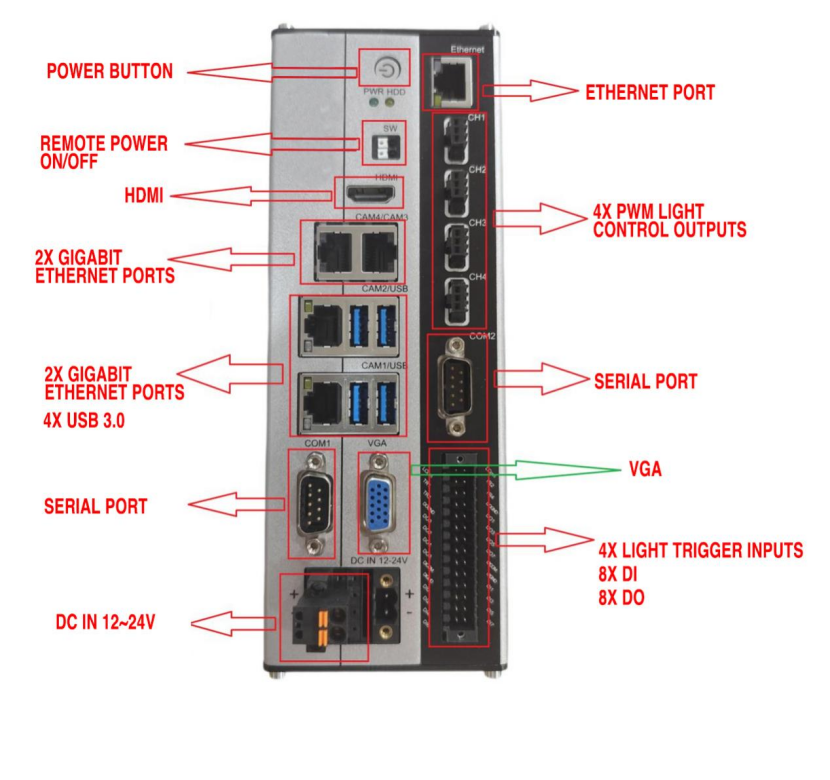

Integrated Vision-Specific I/O
Integrated Vision-Specific I/O
8-channel Digital Input/Output
Support for Automation ControlHigh-Speed Camera Interfaces
4 Gigabit Ethernet ports (Cam1–Cam4) for camera connectionsSoftware Control and Trigger Control
USB Connectivity
4 USB 3.0 ports
Light Source Control
Operating System
Customized Windows 10 Enterprise Edition
Power and Mechanical DesignDC 24V stable power supply
Max power consumption: 120W
Dimensions: 154.5 mm (W) × 200 mm (L) × 74.6 mm (H)
Weight: 2.4 kg
Parameter
Item Type | Specific Item | Specific Parameters |
Central Processing Unit | CPU | Intel Core i5-8500, Main Frequency 3.0GHz |
BIOS | AMI UEFI 64Mbit | |
Memory | RAM | DDR4 16G |
SSD | SSD 128G | |
Display | Analog Interface | VGA |
Digital Interface | HDMI | |
Camera Network | Gigabit Ethernet | Cam1~Cam4 |
Serial Interface | COM1~COM2 | |
Control | Ethernet | Ethernet |
USB | USB3.0 (Compatible with 2.0, 1.1) *4 | |
Light Source | Light Source Output | L1~L4 |
Light Source Control | Software Control, Trigger Control | |
Remote Switch | Remote Switch Port | SW |
Digital I/O | DIO | 8bits DI, 8bits DO |
Operating System | Microsoft Windows | Enterprise Edition WIN10, Supports One-Key Recovery |
Power Supply | Power Adapter Output | DC 24V 5A, with Overcurrent, Overvoltage, and Reverse Polarity Protection |
Max Power Consumption | 120W | |
Mechanical | Mounting | DIN Rail, Wall Mount |
Mechanical Parameters | Dimensions | 154.5 mm (W) x 200 mm (L) x 74.6 mm (H) |
Weight | 2.4Kg | |
Environmental Adaptation | Operating Temperature | -20°C~60°C (-4°F~140°F) with air flow (mSATA) |
Storage Temperature | -40°C~80°C (-40°F~176°F) with air flow (mSATA) | |
Relative Humidity | 5%~95% Relative Humidity, Non-Condensing | |
Reliability | Operating Vibration | SSD: 1.5 Grms, IEC 6006 x -2-64, random, 5 ~ 500 Hz, 1 hr/axis |
Operating Shock | SSD applied: 10 G, IEC 6006 x-2-64, Half-sine, Duration 11ms | |
EMC |
| CE/FCC Class A |
Dimension
Optional Accessories
