High-end Series Vision Controller
HC-SYS222V-28S
Intel® Core™ i5-6500T machine vision computer with vision-specific I/O, real-time controller, and external power supply
Combining embedded PC technology, expanded functionality, optimized size, and robust construction, MSTAR TECHNOLOGIES' vision controllers are ideal for manufacturing facilities. These industrial computing platforms deliver desktop-level performance, easily monitoring one or multiple production lines. When paired with additional boards, they offer versatile options for image acquisition, network interfaces, processing offloading, and acceleration. Our advanced vision controller technology supports high-speed imaging for single or multi-camera installations, ensuring efficient, reliable operations.
Features
Intel® Core™ i5-6500T Processor
Integrated Vision-Specific I/O
8-channel Digital Input/Output (DIO)
Support for automation control
High-Speed Camera Interfaces
5 Gigabit Ethernet ports (Cam1–Cam5) for camera connections
3 USB 3.0 ports and 5 USB 2.0 ports
Light Source Control: Software Control, Trigger Control
Operating System: Customized Win10 64bit
Power and Mechanical Design
DC 19V stable power supply
Max power consumption: 90W
Dimensions: 240mm (W) × 185mm (D) × 80mm (H)
Weight: 3.55 kg
Osmium blue chassis with natural aluminum heat sink cover for industrial use
Parameter
Item Category | Specific Item | Technical Specifications |
Processor | CPU | i5-6500T |
Chipset | H110 | |
Memory | RAM | 8GB |
SSD | 128GB | |
Display | Analog Interface | VGA |
Digital Interface | HDMI | |
Digital Interface | DVI-D | |
Camera Network Port | Gigabit Ethernet Port | Cam1~Cam5 |
Control | Serial Interface | Com1~Com4 |
Ethernet | Ethernet | |
USB Port | USB3.0 *3, USB2.0 *5 | |
Digital I/O | DIO (Digital Input/Output) | 8ch |
Light Source | Light Source Output | L1~L4 |
Light Source Control | Software Control, Trigger Control | |
Remote Switch | Remote Switch Port | SW+, SW- |
Operating System | Microsoft Windows | Customized Win10 64bit |
Power Supply | Power Adapter Output | DC 19.0V |
Maximum Power Consumption | 90.0W | |
Mechanical Parameters | Color | Chassis: Osmium Blue, Heat Sink Cover: Natural Aluminum |
Dimensions | 240mm (W) × 185mm (D) × 80mm (H) | |
Weight | 3.55 kg | |
Environmental Adaptability | Operating Temperature | -10°C~+60°C |
Storage Temperature | -40°C~+85°C | |
Relative Humidity | ≤40°C, 95% RH (Non-condensing) |

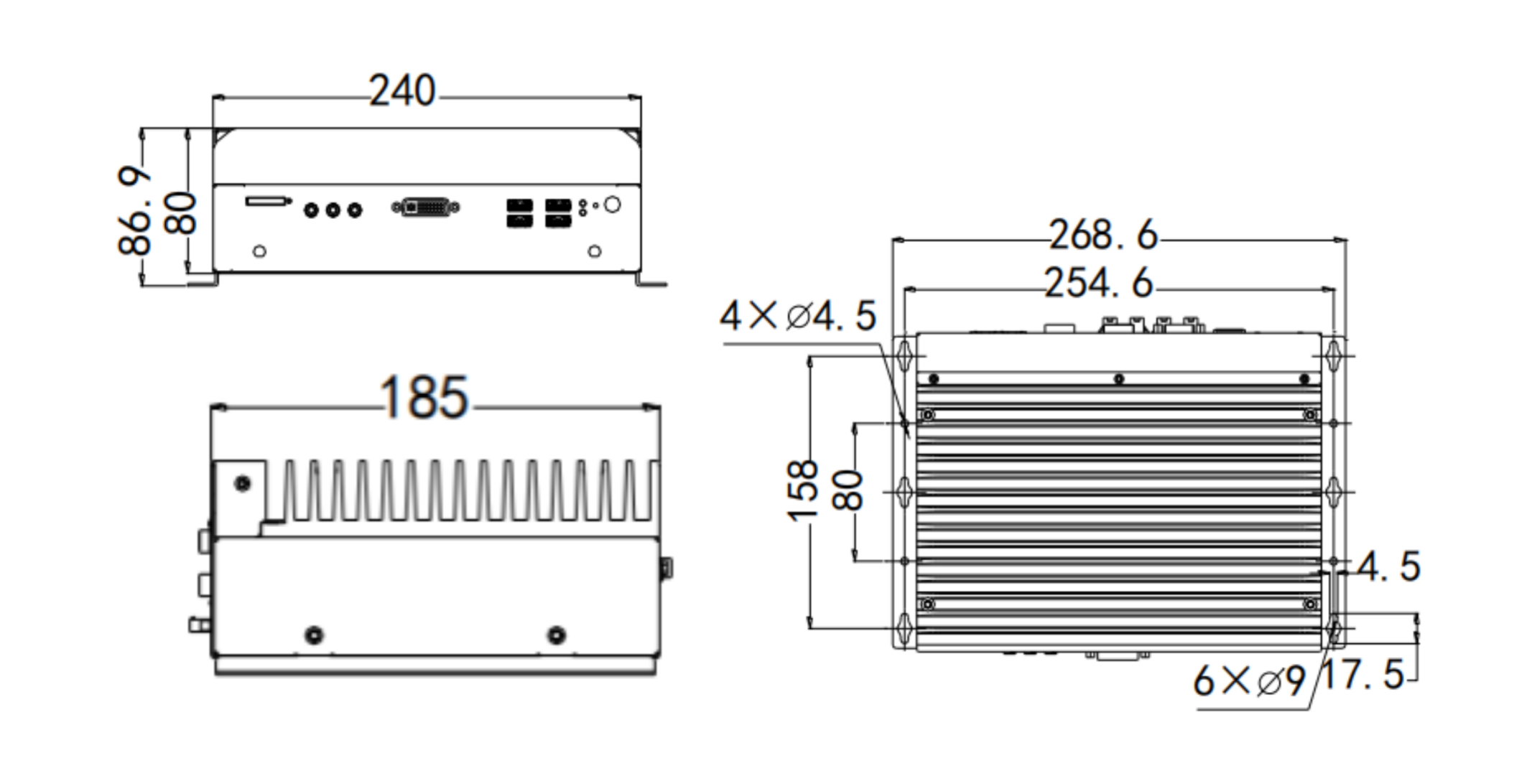

Dimension
Optional Accessories

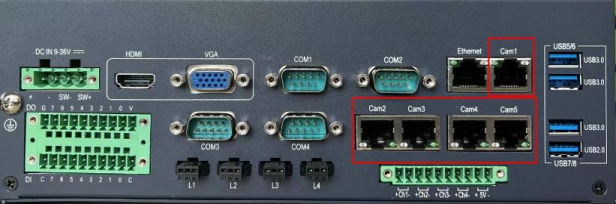

Cam1, Cam2, Cam3, Cam4, Cam5 support 5 industrial cameras without POE function.
