High-end Series Vision Controller

HC-SYS335VII-32G

Intel® Core™ I7-8700 machine vision computer with vision-specific I/O, real-time control, and GPU computing
Get a Quote
Combining embedded PC technology, expanded functionality, optimized size, and robust construction, MSTAR TECHNOLOGIES' vision controllers are ideal for manufacturing facilities. These industrial computing platforms deliver desktop-level performance, easily monitoring one or multiple production lines. When paired with additional boards, they offer versatile options for image acquisition, network interfaces, processing offloading, and acceleration. Our advanced vision controller technology supports high-speed imaging for single or multi-camera installations, ensuring efficient, reliable operations.
Features
Intel® Core™ i7-8700 Processor
Integrated Vision-Specific I/O
24-channel Digital Input/Output (12 DI and 12 DO)
Support for automation control
High-Speed Camera Interfaces

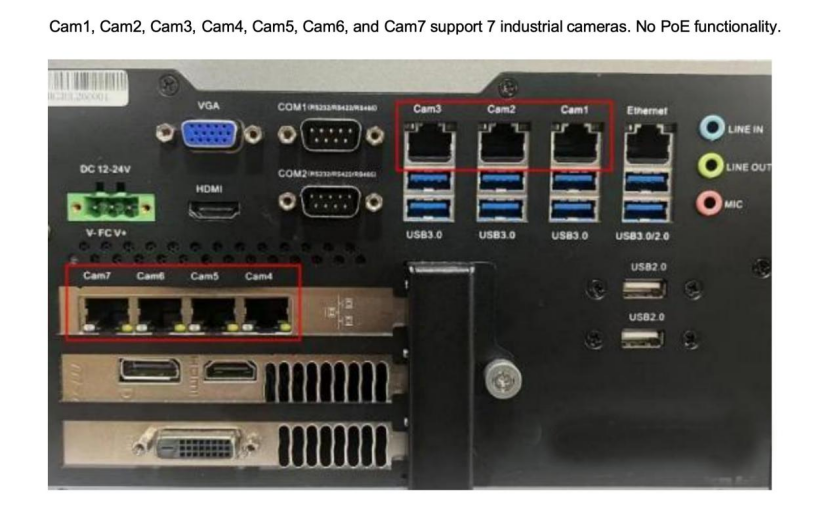

7 Gigabit Ethernet ports (Cam1–Cam7) for camera connections
8 USB 3.0 ports and 2 USB 2.0 ports
Graphics Processing Unit (GPU) Support
NVIDIA® GTX1650 / GTX3050 for accelerated vision tasks
Power and Mechanical Design
DC 24V stable power supply
Max power consumption: 220W
Dimensions: 262mm (W) × 219mm (D) × 141mm (H)
Weight: 6.3 kg
Professional black chassis for industrial us
Parameter

Item Category

Specific Item

Technical Parameters

Central Processing Unit

CPU

i7-8700

Chipset

Q270

Memory

RAM

16G

Solid State Drive (SSD)

1T

Display

Analog Interface

VGA

Digital Interface

HDMI

GPU

GTX1650

Camera Network Port

Gigabit Ethernet Port

Cam1~Cam7

Control

Serial Interface

Com1~Com6

Ethernet

Ethernet

USB Port

USB3.08<br>USB2.02

Digital I/O

DIO (Digital Input/Output)

12ch

Remote Switch

Remote Switch Port

SW+, SW-

Operating System

Microsoft Windows

Customized Win10 64bit

Power Module

Power Adapter Output

DC 24V

Maximum Power Consumption

220W

Color

Chassis: Black

Mechanical Parameters

Dimensions

262mm (W) × 219mm (D) × 141mm (H)

Weight

6.3Kg

Environmental Adaptability

Operating Temperature

-10℃~+60°C

Storage Temperature

-40℃~+85°C

Relative Humidity

Temperature 40℃, Relative Humidity 95% (Non-condensing)

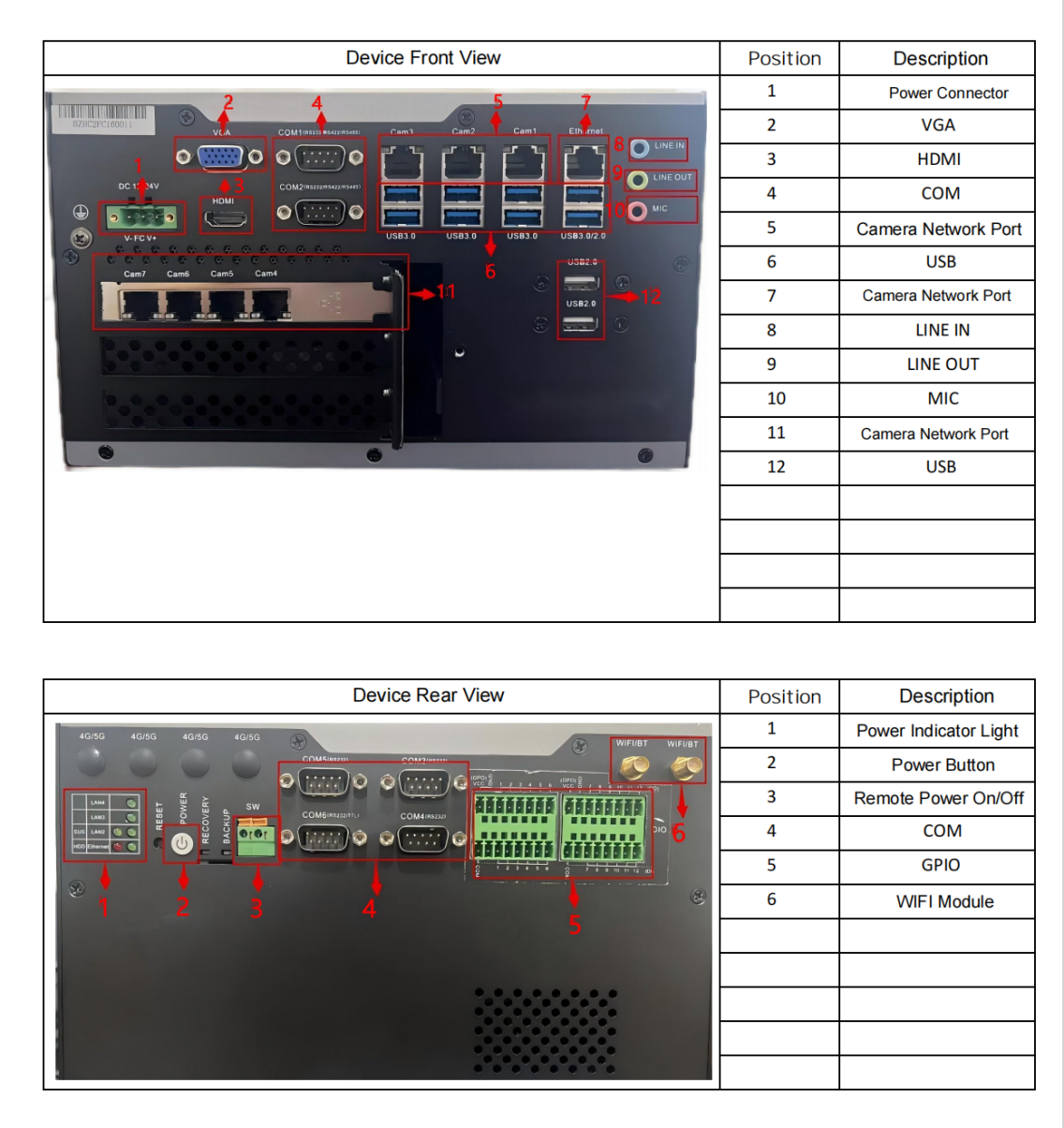

Dimension

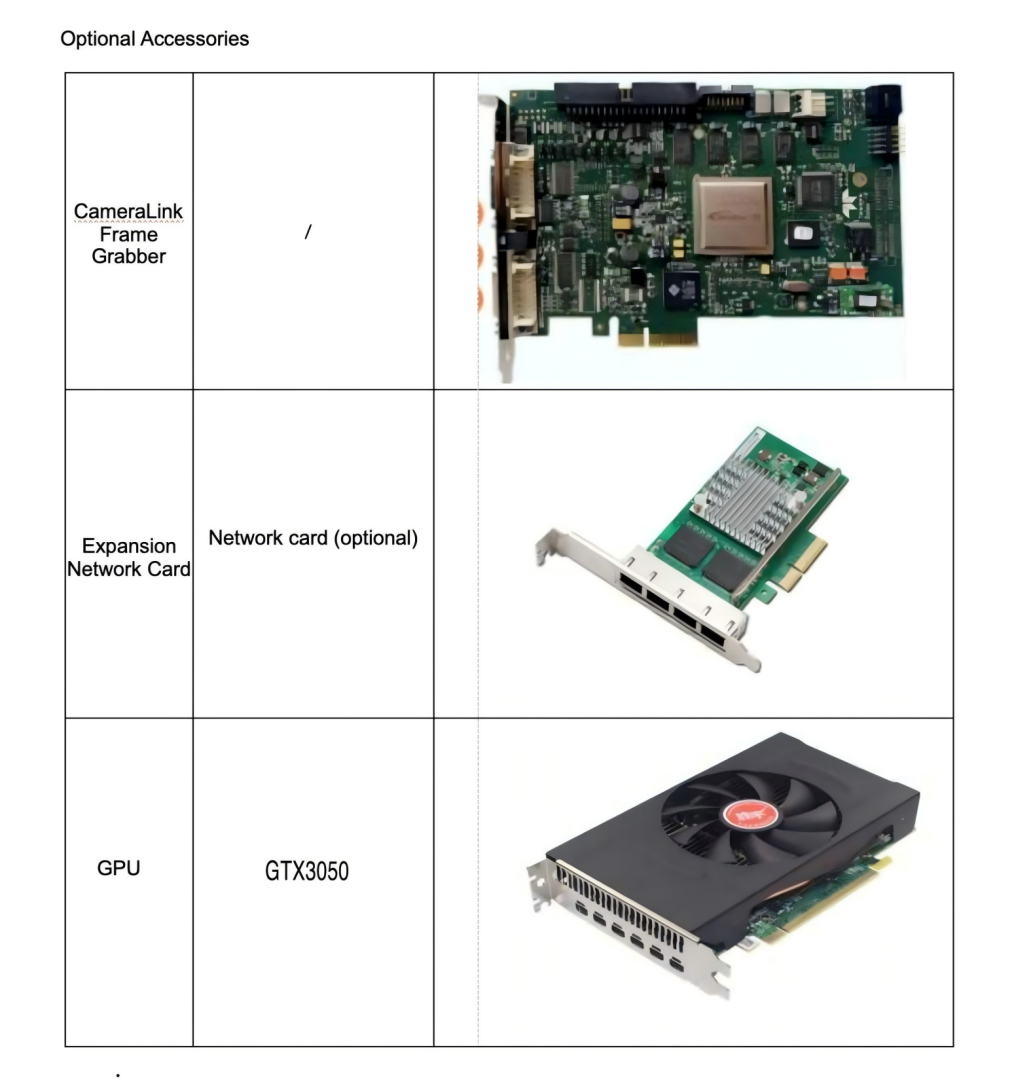

Optional Accessories
