High-end Series Vision Controller
HC-SYS320II-12
Intel® Core™ i7-6700 Processor with vision-specific I/O, real-time controller, and optional GPU computing
Combining embedded PC technology, expanded functionality, optimized size, and robust construction, MSTAR TECHNOLOGIES' vision controllers are ideal for manufacturing facilities. These industrial computing platforms deliver desktop-level performance, easily monitoring one or multiple production lines. When paired with additional boards, they offer versatile options for image acquisition, network interfaces, processing offloading, and acceleration. Our advanced vision controller technology supports high-speed imaging for single or multi-camera installations, ensuring efficient, reliable operations.
Features
Intel® Core™ i7-6700 Processor
Base frequency of 3.4GHz for efficient and reliable processing.
Integrated Vision-Specific I/O
8-channel Digital Input/Output (8 DI and 8 DO) for precise control of external devices.
Light source control with software and trigger options for enhanced vision system flexibility.
High-Speed Camera Interfaces
USB3.0×4 for high-speed peripheral connections.
Gigabit Ethernet ports (CAM1~CAM5) for high-speed industrial camera connections.
Control and Connectivity
3 serial ports (COM1~COM3) with RS-232/RS-485 mode selection for versatile communication.
VGA, DP, and DVI video interfaces for flexible display options.
Ethernet connectivity for seamless integration into industrial networks.
Power and Mechanical Design
DC 24V power supply with a maximum power consumption of 120W.
Dimensions: 240mm (W) × 225mm (D) × 111mm (H).
Weight: 3.8kg.
Wall-mounted design for efficient installation in industrial environments.
Parameter
Category | Item | Specifications |
Processor | CPU | Intel Core i7-6700 |
Memory | RAM (Memory) | 16G |
Storage | SSD (Solid State Drive) | 128G (Customizable) |
Display | Analog Interface | VGA |
Digital Interface | DP | |
Digital Interface | DVI | |
Discrete Graphics Card (Optional) | GTX1650 (Optional) | |
Camera Interface | High-Speed Serial Bus | USB3.0×4 |
Gigabit Ethernet Port | CAM1~CAM5 | |
Universal Serial Bus | USB2.0×4 | |
Control | Serial Port | COM1~COM3 |
Ethernet | Ethernet | |
Digital I/O | DIO (Digital Input/Output) | 8ch (Optional) / 16ch (Optional) |
Operating System | Microsoft Windows | Win10 64bit |
Power Supply | Power Module | DC 24V |
Mechanical | Mounting | Wall-mounted |
Mechanical Parameters | Dimensions | 240 mm (W) x 225 mm (D) x 111 mm (H) |
Weight | 3.8Kg | |
Environmental Adaptability | Operating Temperature | -20℃~70℃ |
Storage Temperature | -40℃~80℃ | |
Relative Humidity | 5%~95% RH, Non-condensing | |
Vibration | Operating, 5 Grms, 5-500 Hz, 3 axes (Using SSD, tested according to IEC60068-2-64) | |
Reliability | Shock | Operating, 50 Grms, Half-sine wave, 11 ms duration (Using SSD, tested according to IEC60068-2-27) |
EMC | CE/FCC Class A, tested according to EN 55022, EN 55024 & EN 55032 |

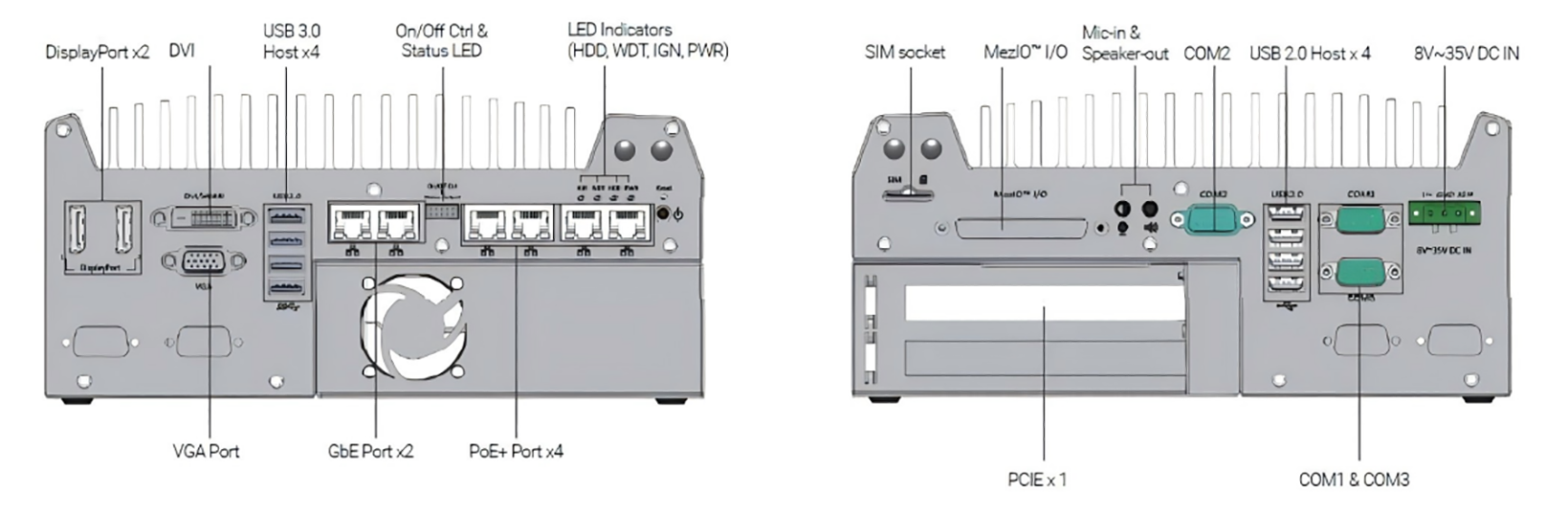

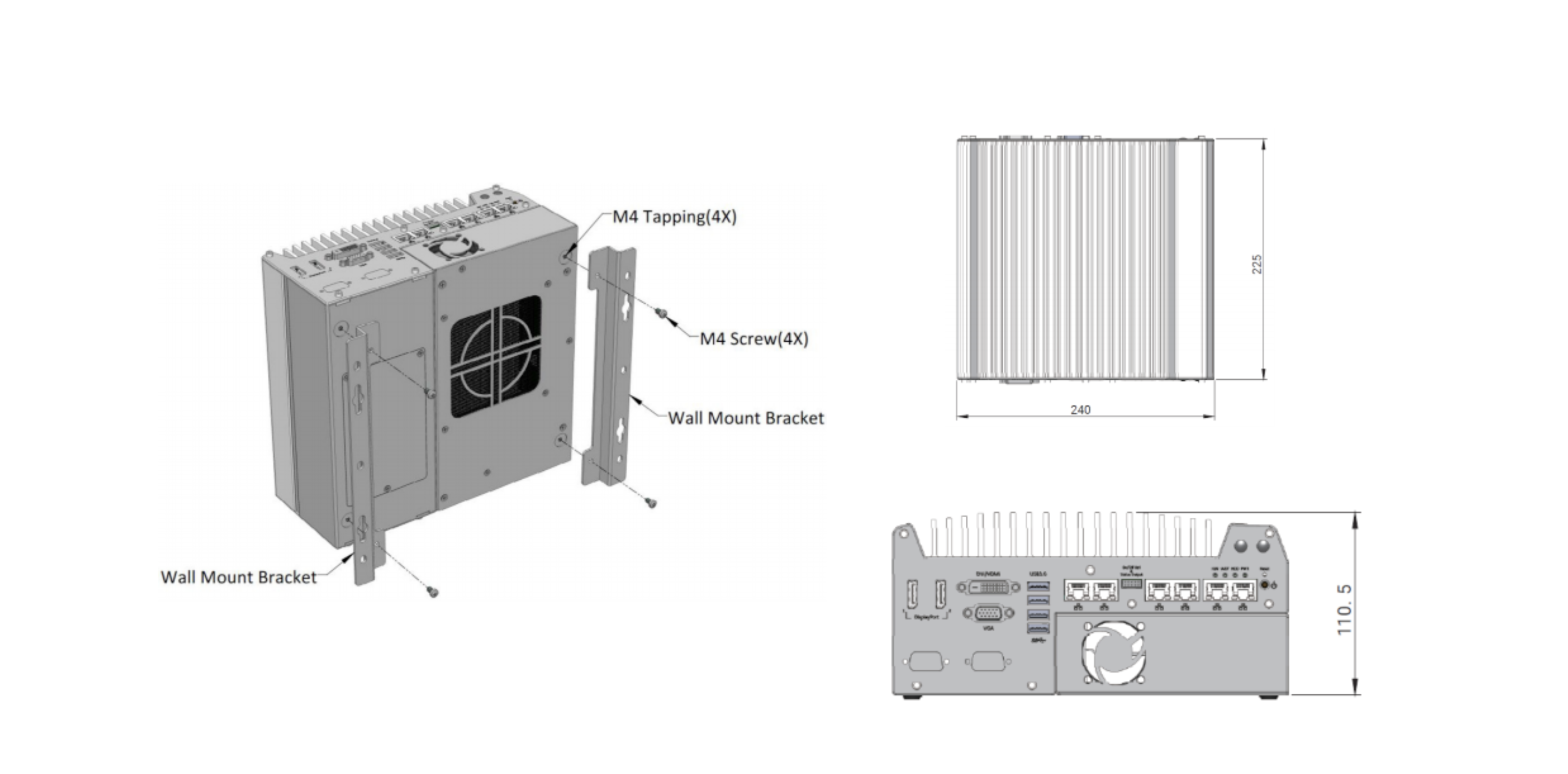

Dimension

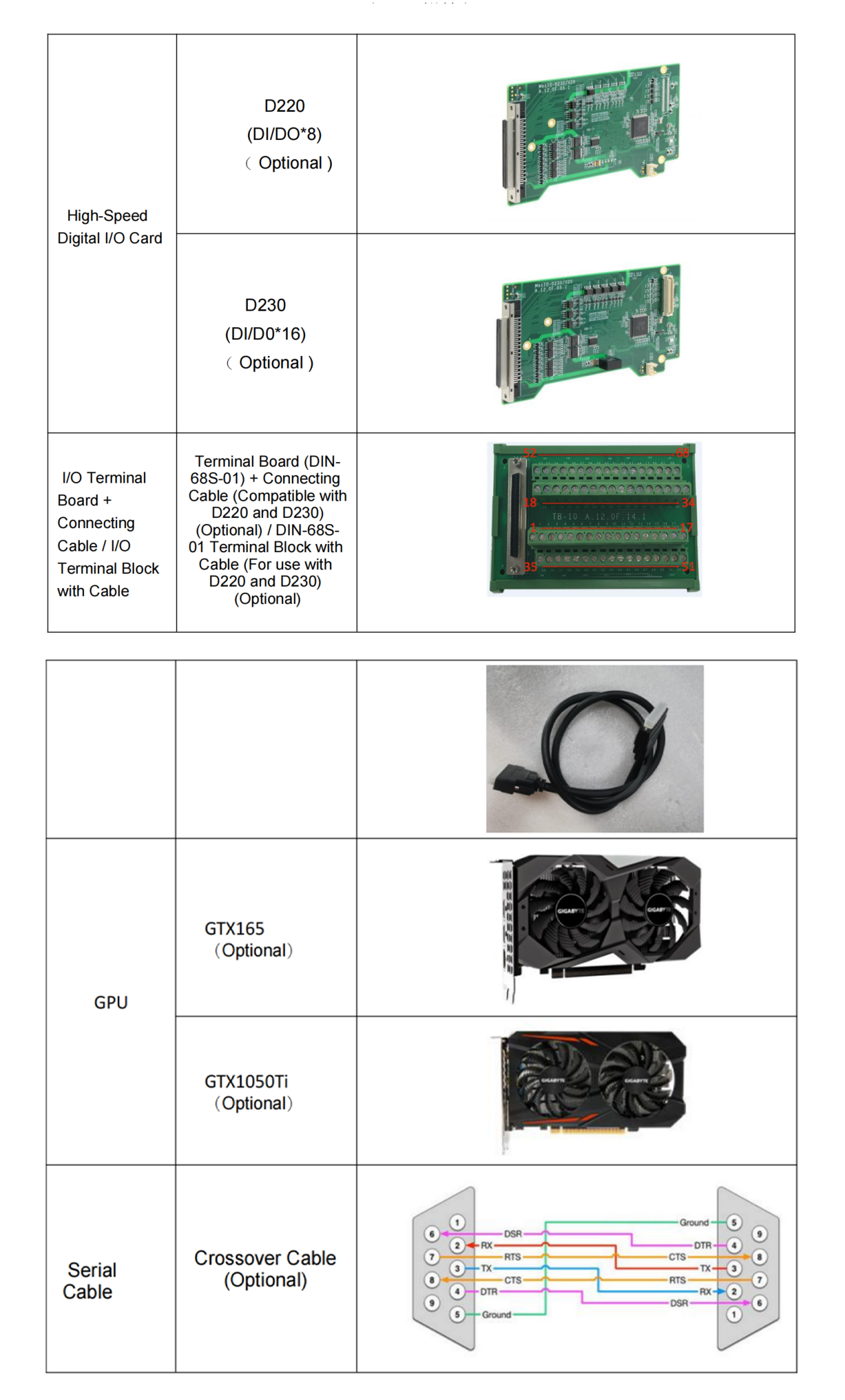

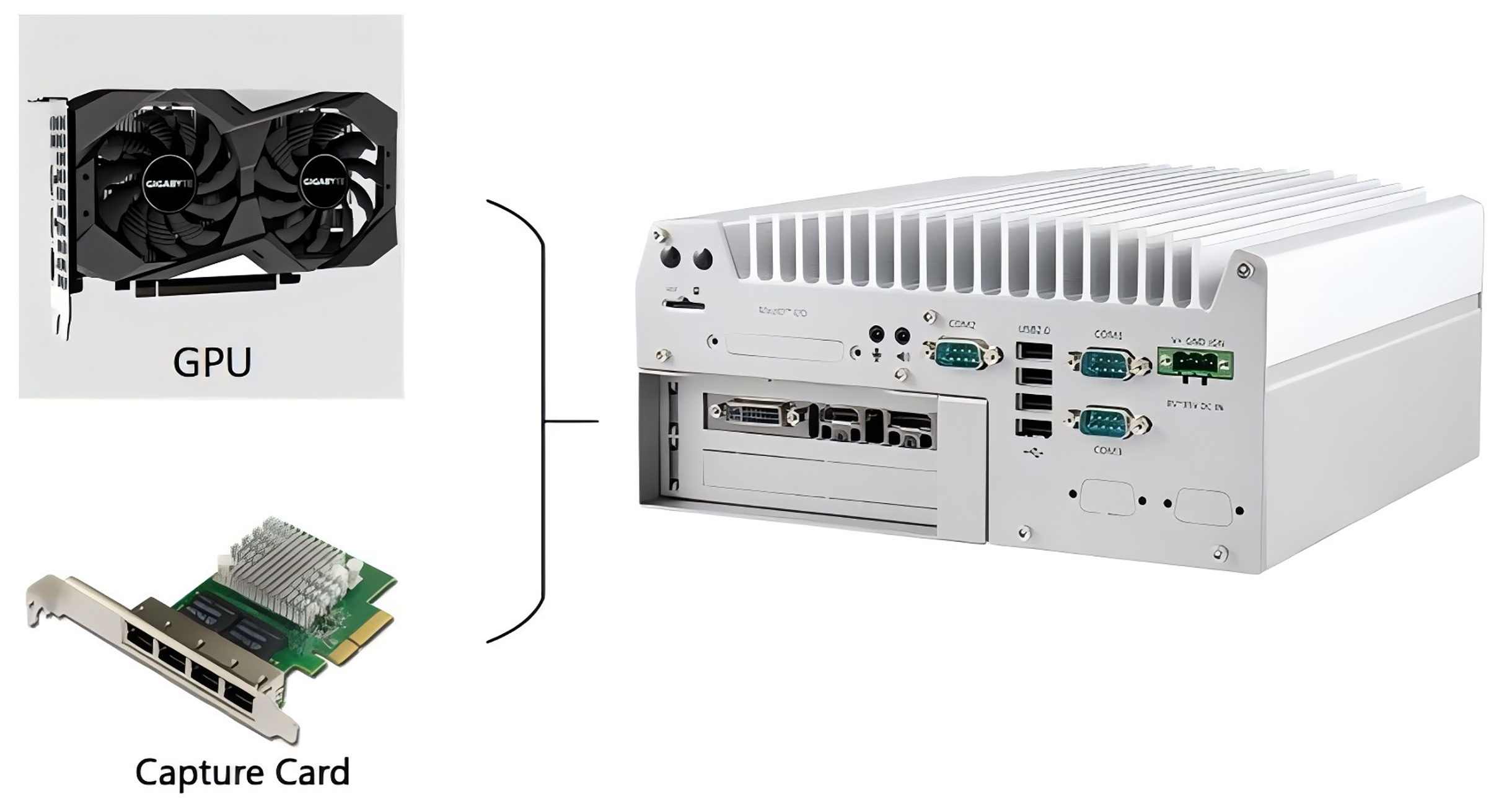

Optional Accessories
HC-SYS320V-12 can support 5 industrial cameras.
