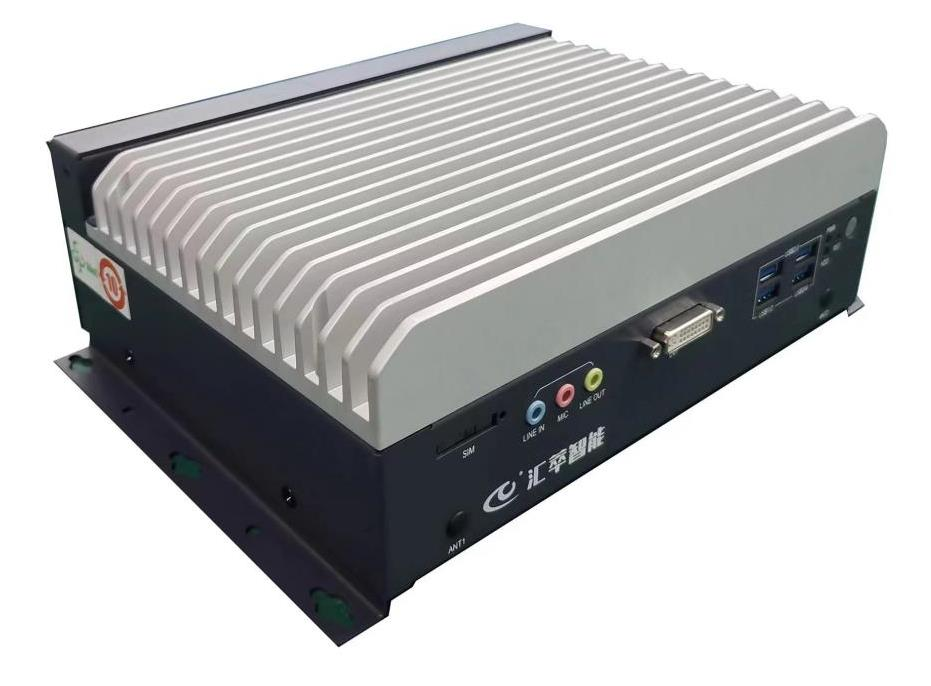

Basic Series Vision Controller
HC-SYS122III-28S
Intel® 6th-Gen Core™ i3-6100T machine vision computer with vision-specific I/O, real-time control, and advanced GPU-computing
Combining embedded PC technology, expanded functionality, optimized size, and robust construction, MSTAR TECHNOLOGIES' vision controllers are ideal for manufacturing facilities. These industrial computing platforms deliver desktop-level performance, easily monitoring one or multiple production lines. When paired with additional boards, they offer versatile options for image acquisition, network interfaces, processing offloading, and acceleration. Our advanced vision controller technology supports high-speed imaging for single or multi-camera installations, ensuring efficient, reliable operations.
Features
Intel® Core™ i3-6100T Processor
Base frequency of 3.2GHz for efficient processing.
Integrated Vision-Specific I/O
8-channel Digital Input/Output (8 DI and 8 DO) with PNP output for precise control.
Optimized I/O interfaces for seamless integration in industrial automation.
High-Speed Camera Interfaces
3 Gigabit Ethernet ports (CAM1~CAM3) for high-speed camera connections.
Control and Connectivity
3 USB 3.0 ports (compatible with USB 2.0/1.1).
4 serial ports (COM1–COM4, RS-232/RS-485 mode selection).
Ethernet connectivity for flexible integration.
Power and Mechanical Design
DC 19V power supply with 90W max power consumption.
Dimensions: 240mm (W) × 185mm (D) × 80mm (H).
Weight: 3.55kg.
Compact and durable chassis designed for industrial environments.
Parameter
Category | Item | Specifications |
Central Processing Unit | CPU | i3-6100T |
Chipset | H110 | |
Memory/Storage | RAM (Memory) | 8G |
SSD (Solid State Drive) | 128G | |
Display | Analog Interface | VGA |
Digital Interface | HDMI | |
Digital Interface | DVI-D | |
Camera Network Port | Gigabit Ethernet Port | Cam1~Cam3 |
Control | Serial Port | Com1~Com4 |
Ethernet | Ethernet | |
USB | USB3.03<br>USB2.05 | |
Digital I/O | DIO (Digital Input/Output) | 8ch |
Light Source | Light Source Output | L1~L4 |
Light Source Control | Software Control, Trigger Control | |
Remote Switch | Remote Switch Port | SW+, SW- |
Operating System | Microsoft Windows | Customized Win10 64bit |
Power Supply | Power Adapter Output | DC 19.0V |
Max Power Consumption | 90.0W | |
Mechanical Parameters | Color | Chassis: Slate Blue; Heat Sink Cover: Natural Aluminum |
Dimensions | 240mm (W) × 185mm (D) × 80mm (H) | |
Weight | 3.55Kg | |
Environmental Adaptability | Operating Temperature | -10°C~+60°C |
Storage Temperature | -40°C~+85°C | |
Relative Humidity | Temperature 40°C, Relative Humidity 95% (Non-condensing) |

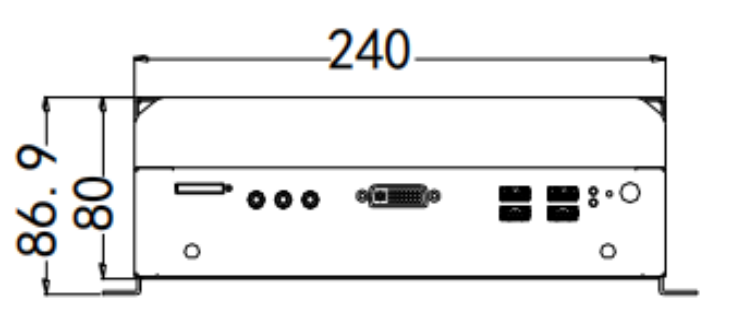

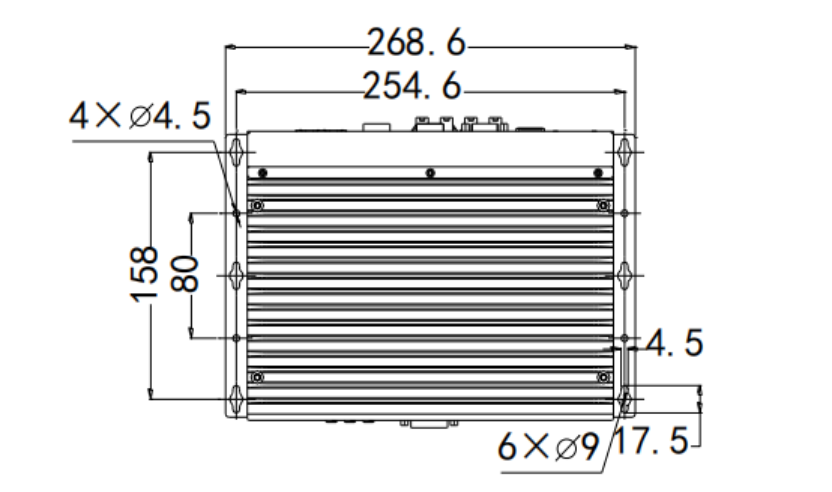

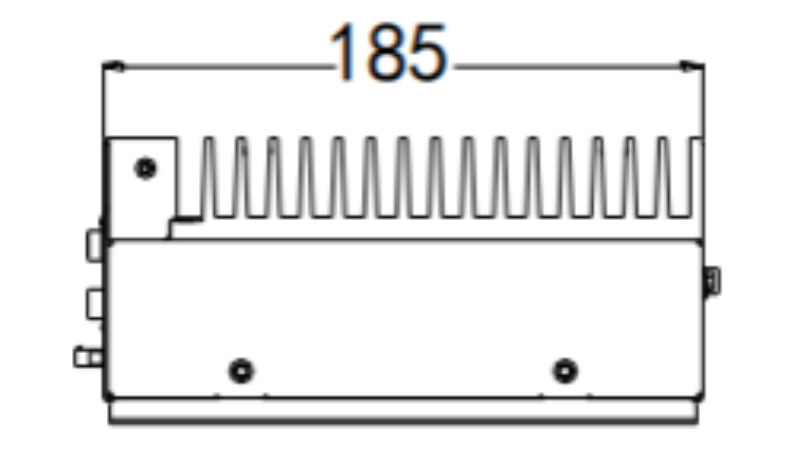

Dimension
Optional Accessories

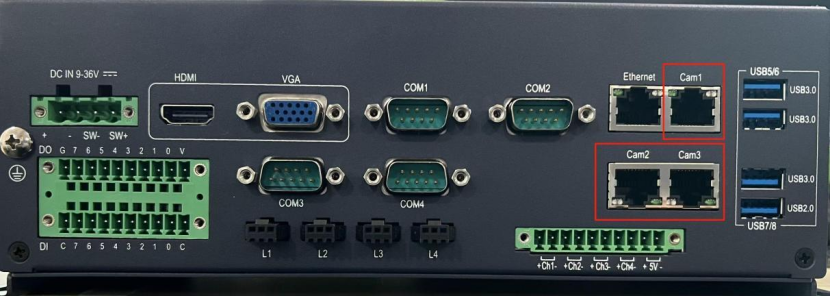

Cam1, Cam2, and Cam3 only support 3 industrial cameras and have no POE function.
