AI Series Vision Controller
HC-SYS535II-41U
Intel® Core™ i7-12700 machine vision processor with AI-specific I/O, real-time control, and expandable design
Combining embedded PC technology, expanded functionality, optimized size, and robust construction, MSTAR TECHNOLOGIES' vision controllers are ideal for manufacturing facilities. These industrial computing platforms deliver desktop-level performance, easily monitoring one or multiple production lines. When paired with additional boards, they offer versatile options for image acquisition, network interfaces, processing offloading, and acceleration. Our advanced vision controller technology supports high-speed imaging for single or multi-camera installations, ensuring efficient, reliable operations.
Features
Intel® Core™ i7-8700 Processor
High-performance processing for demanding vision applications
Integrated Vision-Specific I/O
24-channel Digital I/O for automation control
High-Speed Camera Interfaces
7 Gigabit Ethernet ports (Cam1–Cam7) for camera connections
8 USB 3.0 ports and 2 USB 2.0 ports
GPU Support
Optional NVIDIA® GTX1650 / GTX3050 for accelerated vision tasks
Power and Mechanical Design
DC 24V power supply with max power consumption of 220W
Dimensions: 262mm (W) × 219mm (D) × 141mm (H)
Weight: 6.3 kg
Professional black chassis for industrial use
Parameter
Item Category | Specific Item | Technical Specifications |
Processor | CPU | i7-8700 |
Chipset | H110 | |
Memory | RAM | 16G |
SSD | 1T | |
Display | Analog Interface | VGA |
Digital Interface | HDMI/DP | |
GPU | Optional | |
Camera Network Port | Gigabit Ethernet Port | Cam1~Cam2 |
Control | Serial Interface | Com1~Com6 |
USB Port | USB3.04<br>USB2.04 | |
Operating System | Microsoft Windows | Customized Win10 64bit |
Power Supply | Input Voltage | AC100~240V, 50-60Hz |
Maximum Power Consumption | 750W | |
Color | Chassis: Silver | |
Mechanical Parameters | Structure | Full Steel Chassis Structure |
Dimensions | 482mm x 450mm x 177mm | |
Weight | 13Kg | |
Environmental Adaptability | Operating Temperature | 0℃~45℃ |
Storage Temperature | -20℃~60℃ | |
Relative Humidity | 5~95% (Non-condensing) | |
Vibration | Using SSD: 5~500Hz, 1.5Grms, Compliant with IEC60068-2-64 | |
Shock | SSD: 10G (Duration 11ms, Half-sine Wave), Compliant with IEC60068-2-27 | |
EMC | CE/FCC Class A |

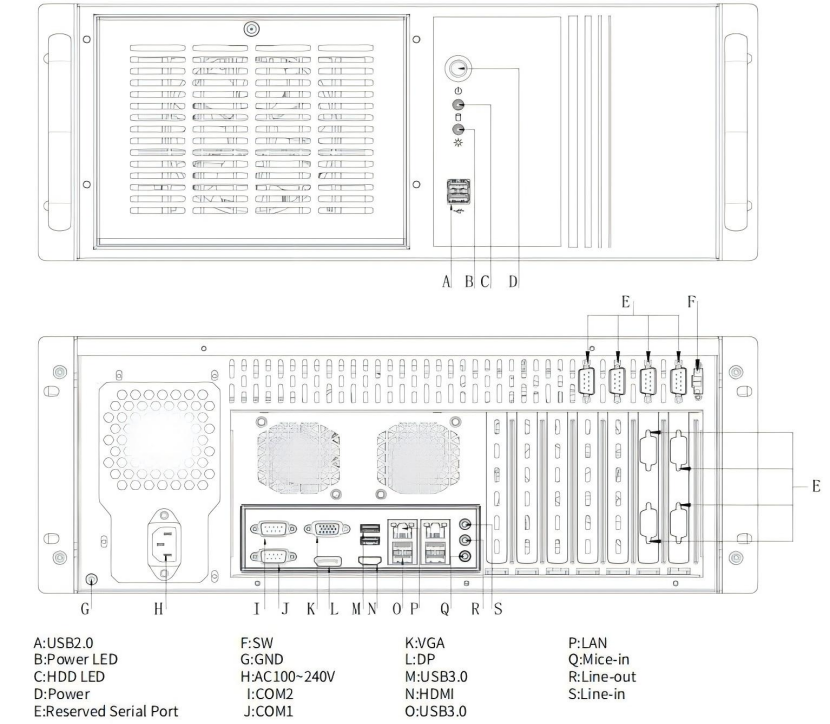

Dimension
