The 1/1.8" 5MP FA Lens series provides a high-performance solution for diverse industrial applications. Designed with a fixed aperture and optional manual adjustments, these lenses offer superior image quality and adaptability. Boasting high resolution, minimal distortion, and a versatile focal length range (4-75mm), they ensure precise measurements and analysis. Their compact design enables seamless integration into systems, while the high contrast and compatibility with 2MP, 3MP, and 5MP cameras render them ideal for a wide array of machine vision applications.
Features
Fixed aperture, manual adjustable aperture is optional
The TV distortion is less than 0.1%
Series focal length covers 4-75mm
Compact design
High contrast industrial FA lens
The TV distortion is less than 0.1%
Series focal length covers 4-75mm
Compact design
High contrast industrial FA lens
Parameter
| EFL | 35 | Sensor size | 1/1.8" |
| F.NO | 2.0-C | TV Distortion | ﹤0.1% |
| MOD | 0.2m、0.193X | Mount | C-Mount |
| 1/1.8" FOV Angle | 11.8°×8.7° | 1/2.5" FOV Angle | 9.4°×7.1° |
| 1/3" FOV Angle | 7.9°×5.9° | Size | φ28×33 |
| Weight | 45.1 | Filter Size | M25.5×P0.5 |

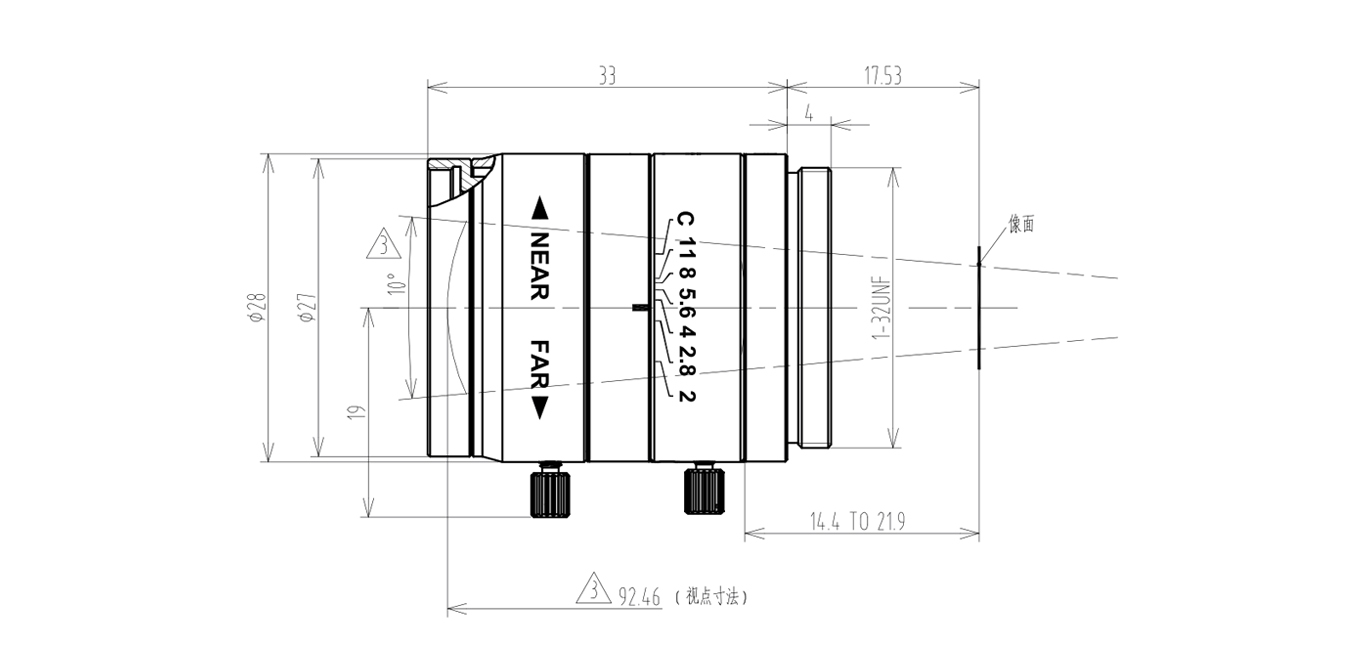

Dimension
