Smart Industrial Color Camera
HC-SMART33GC
Smart Industrial Color Camera with X86 Platform, 0.3MP, Resolution 640x480, 780 FPS, SmartSens sensor
This product is a 5MP color smart camera with a IMX sensor and a frame rate of 40fps. This product not only has low heat generation, but also has very high integration and cost-effectiveness. The camera has a built-in standard windows and linux operating system, and applications can be copied directly to the camera without the need for an external computer, which is very suitable for single-station vision monitoring, such as barcode recognition, dimension measurement, metrology, and positioning requirements.
Features
·Simple application of multi-functional integrated smart camera
·Adopt HD-BNCto achieve standardized industrial cable connection
·Trigger x1,flash x1,RS232x1
·M1212core threaded aviation connector,supporting 12v/2A power input
·1-channel input and 2-channel output interfaces can set the output delaywithout processing in the program
·Support Windows 1064bit and Ubuntu16.0464bit systems
·Integrated vision algorithmsare used for positioning,measuring,detectingdefects,and many other applications
Parameter
Model
HC-SMART33GC
Sensor
1/5.6" CMOS
Sensor type
OEM
Camera type
Color
Pixel size
4umx4um
Effective pixels
0.3MP
Resolution @ frame rate
640X480@790FPS
Sensitivity
8V/lux-s 540nm
Exposure mode
Frame exposure
Signal to noise ratio
40dB
GPIO
1 opto-coupler isolated input, 1 opto-coupler isolated output, 1 non-isolated input and output
Output pixel width
8bit
AD width
10bit
Dynamic range
60dB
Exposure time range
0.00124~20.7ms
Maximum gain (multiple)
8
CPU main frequency
Z8350 (1.44-1.92GHZ) quad-core
Internal storage
2G/4G(optional)
Magnetic disk
32G/64G(optional)
Operating system
Default pre-installed Win10 64-bit system, Ubuntu 64-bit system optional
Video output format
Bayer 8bit
Lens interface
C/CS mount, provide with an adapter ring
Data interface
External USB2.0 portx2, 1000 network port x1, HDMI interface x1, built-in USB2.0 interface x1 Support RS232 interface x1 and RTC clock.
Power supply
24V
Power
≤18W
Boundary dimension
64X105X35(mm)(Lens base and rear shell interface are not included)
Weight
<500g
Working temperature
0~50℃
Working humidity
20~80%(No Condensation)
Storage temperature
-30~60℃
Storage humidity
20~95%(No Condensation)
Drive program
Directshow components Halcon special components Labview dedicated drive OCX components TWAIN components
Programming language
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction,ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.

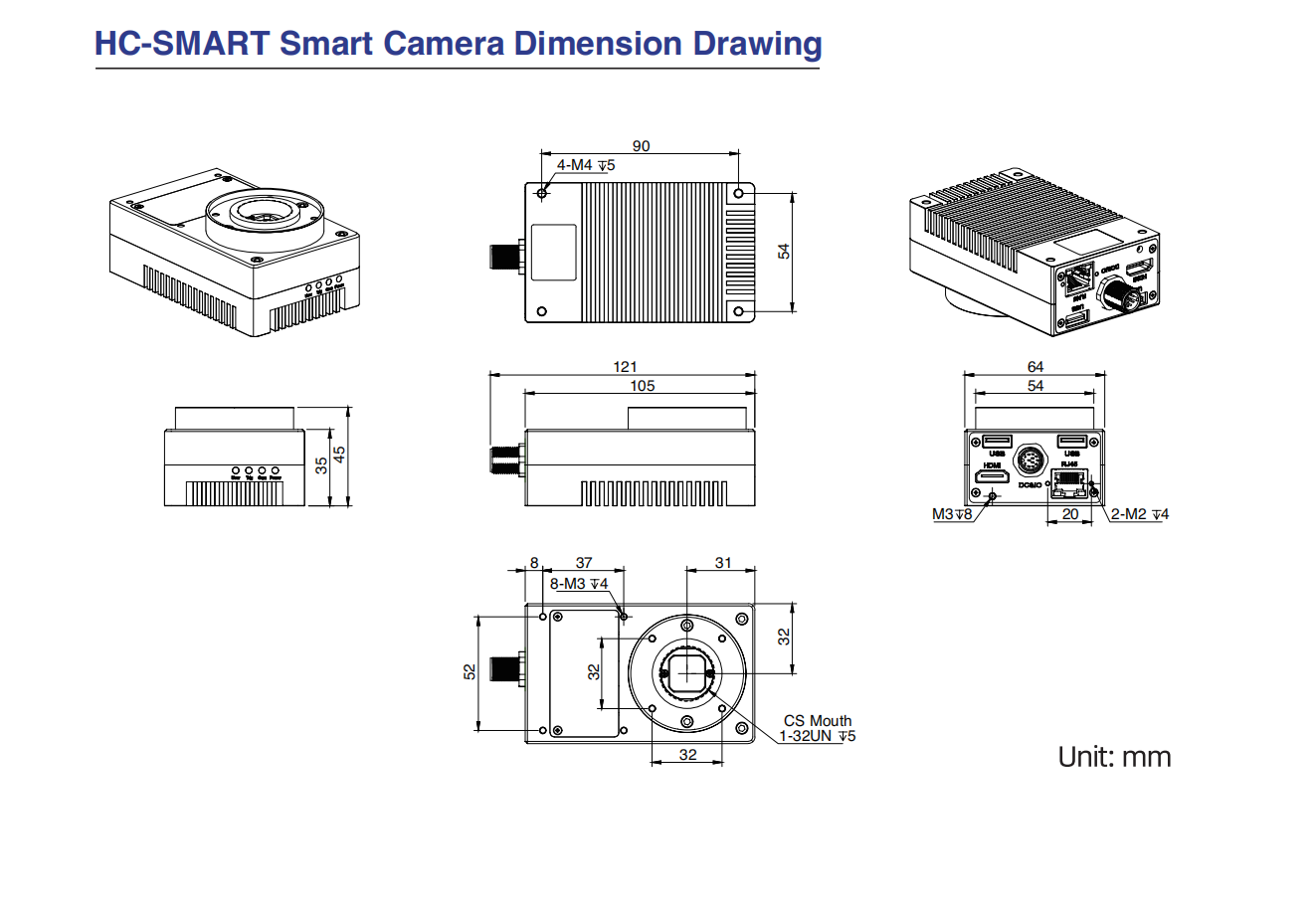

Dimension
