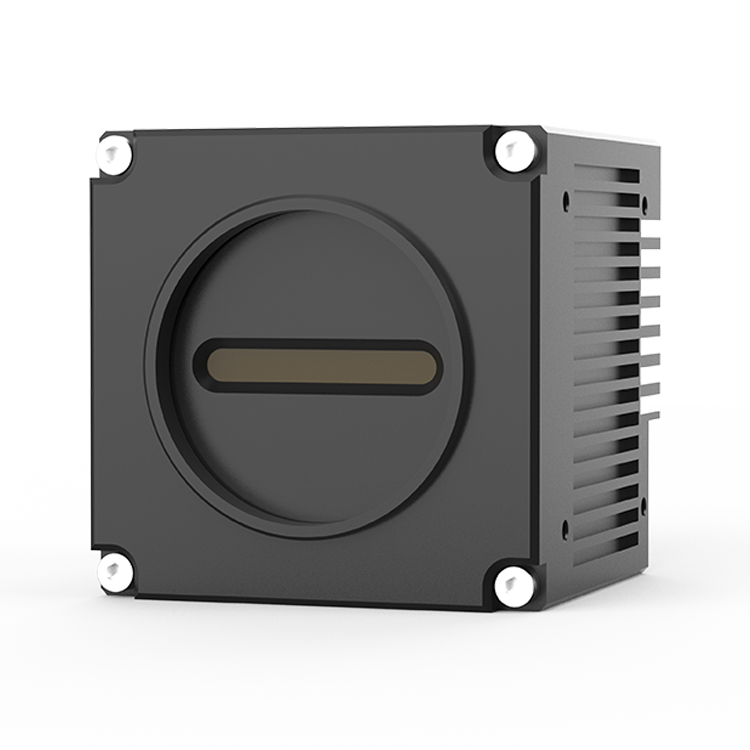

Line Scan Mono Camera
162M-MSAXGL
Line Scan Mono Camera with 10GigE interface, 16384x256, 72/48KHz, 256 TDI, Gpixel sensor
Aiming at the demand of line array camera for industrial production large format inspection and high speed assembly line inspection, MSTAR self-developed industrial line array camera can significantly improve the productivity and inspection accuracy in industrial inspection field. It is a 16K resolution color camera equipped with Gpixel sensor and a maximum line frequency of 72KHz. the camera is an economical product with high performance and low cost, which enhances the competitiveness of products for customers. It is widely used in a variety of applications, including density inspection, weld quality detection, and solder paste detection.
Features
·Supports 256-level TDI, reducing lighting requirements
·Includes fan interface for effective camera temperature control
·Interface with frame grabber integration significantly reduces costs
·Features a standard 10 Gigabit Ethernet interface, enabling stable communication with Category 6A cabling
·Compared to CameraLink and frame grabber setups, this approach offers substantial cost savings
·Maximum transmission distance of up to 100 meters, removing wiring constraints in industrial environments; backward-compatible with Gigabit Ethernet
·Effective bandwidth of 1200 MBytes, ten times that of Gigabit Ethernet, significantly reducing image transmission time and latency
·Complies with GigE Vision and GenICam standards and uses the same SDK as Gigabit Ethernet cameras, accelerating customer development timelines
Parameter
Model
162M-MSAXGL
Camera Type
Mono
Sensor type
CMOS-TDI
Optical dimension
82.666mm
Pixel size
5umx5um
exposure mode
Global exposure
Effective pixels
16384x256
Imaging mode
Supports 256Line TDI and area array focusing mode
Dynamic range
65dB
Signal to noise ratio
41.5dB
AD width
12bit
Pixel output width
10bits
Maximum gain (multiple)
4
Exposure time range(ms)
0.004~50ms
Video output format & Maximum line frequency
Mono 8bit:72K Mono12bit:48K
Binning
Software：Bin2 Bin4 Sum2 Sum4
Mirror image
Software image: up and down, left and right Hardware image: up and down
Trigger mode
Continuous/software trigger/frame trigger/line trigger/conditional line trigger
Frame buffer
1GB
User EEPROM
2KB
Data interface
10 Gigabit network port (10 Gigabit copper cable 10GBase-T, compatible with 100M/1G/2.5/5G)
I/O port
2 pairs of differential signal input, 1 channel optical coupling isolation signal input, 2 channels optical coupling isolation signal output
Power supply
24V
Power
<12w
Lens interface
M42, Flange distance 12mm
Boundary dimension
80×80×66.24mm (Lens mount and back housing mount are not included)
Weight
<1000g
Working Temperature
0~50℃
Working Humidity
20~95%(No Condensation)
