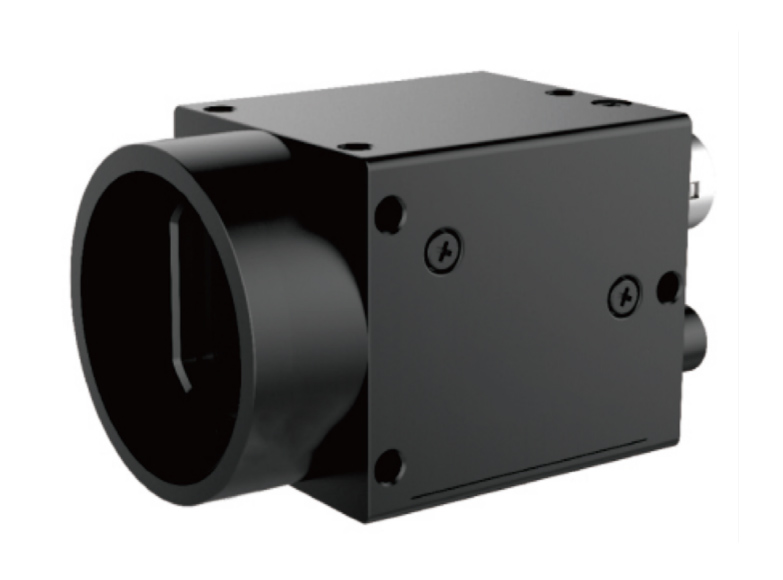

Area Scan Mono Camera
2002M-MSASUA
Area Scan Mono Camera with USB3.0 interface, 20MP, Resolution 5488x3672, 19.5 FPS, IMX283 sensor
Support two USB3.0 interface, up to 10Gbps transmission bandwidth. USB3.0 series CPU occupancy is low, using DMA transmission, 10Gbps data transmission part, almost does not occupy CPU resources. This product is a 20MP Mono CMOS camera with IMX183 sensor and global shutter, which is suitable for wire bonding detection, product inspection, and wheel fastener inspection, etc.
Features
·The camera has its own programmable IO, which supports external trigger flash synchronous photography
·Support 16bit gray and 48bit color lossless format output
·0.3MP to 20MP CMOS, multiple global shutter cameras are optional
·One computer can be connected to multiple cameras, and it can work stably for a long time without dropping frames
·Fully compatible with GigE camera SDK, seamless replacement
·It supports PC Linux system and ARM Linux system, and can be integrated into embedded devices
·Support Vision protocol, seamless compatible with Halcon, Vision Pro, Labview and other vision software
Parameter
Model
2002M-MSASUA
Sensor
1"CMOS
Camera type
Mono
Pixel size
2.4umx2.4um
Effective pixels
20MP
Resolution @ frame rate
5488x3672MAX@19fps
Sensitivity
7.4V V/lux-s 3200K
Exposure mode
Frame exposure
Signal to noise ratio
39dB
GPIO
1 opto-coupler isolated input, 1 opto-coupler isolated output, 1 non-isolated input and output
Output pixel width
10bit
AD width
10bit
Dynamic range
52dB
Frame buffer
128M Bytes
Exposure time range
0.0143ms
Maximum gain (multiple)
8
User EEPROM
2K Bytes
Frequency output format
Mono 8bit/Mono 12bit
Visual standard protocol
USB3Vision 1.0,GenICam
Lens interface
C/CS port, adapter rings are provided
Data interface
USB3.0
Power supply
5V/Aviation head power supply 12V
Power
<3W
Boundary dimension
29X29X32.7(mm)(Lens base and rear shell interface are not included)
Weight
<75g
Working temperature
0~50℃
Working humidity
20~80%(No Condensation)
Storage temperature
-30~60℃
Storage humidity
20~95%(No Condensation)
Operating system
WINXP, WIN7 / 8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers MAC OS system
Drive program
DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components
Programming language
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction,ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.

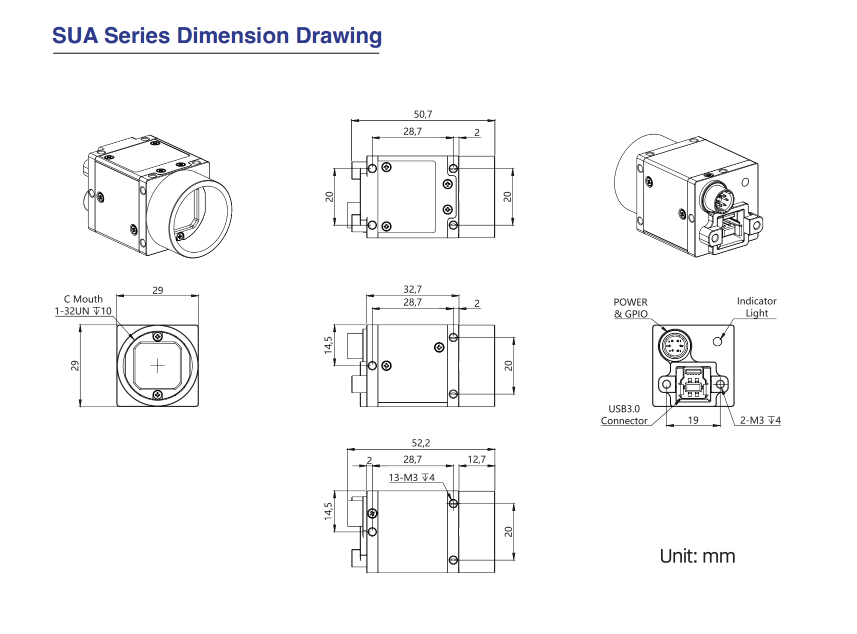

Dimension
