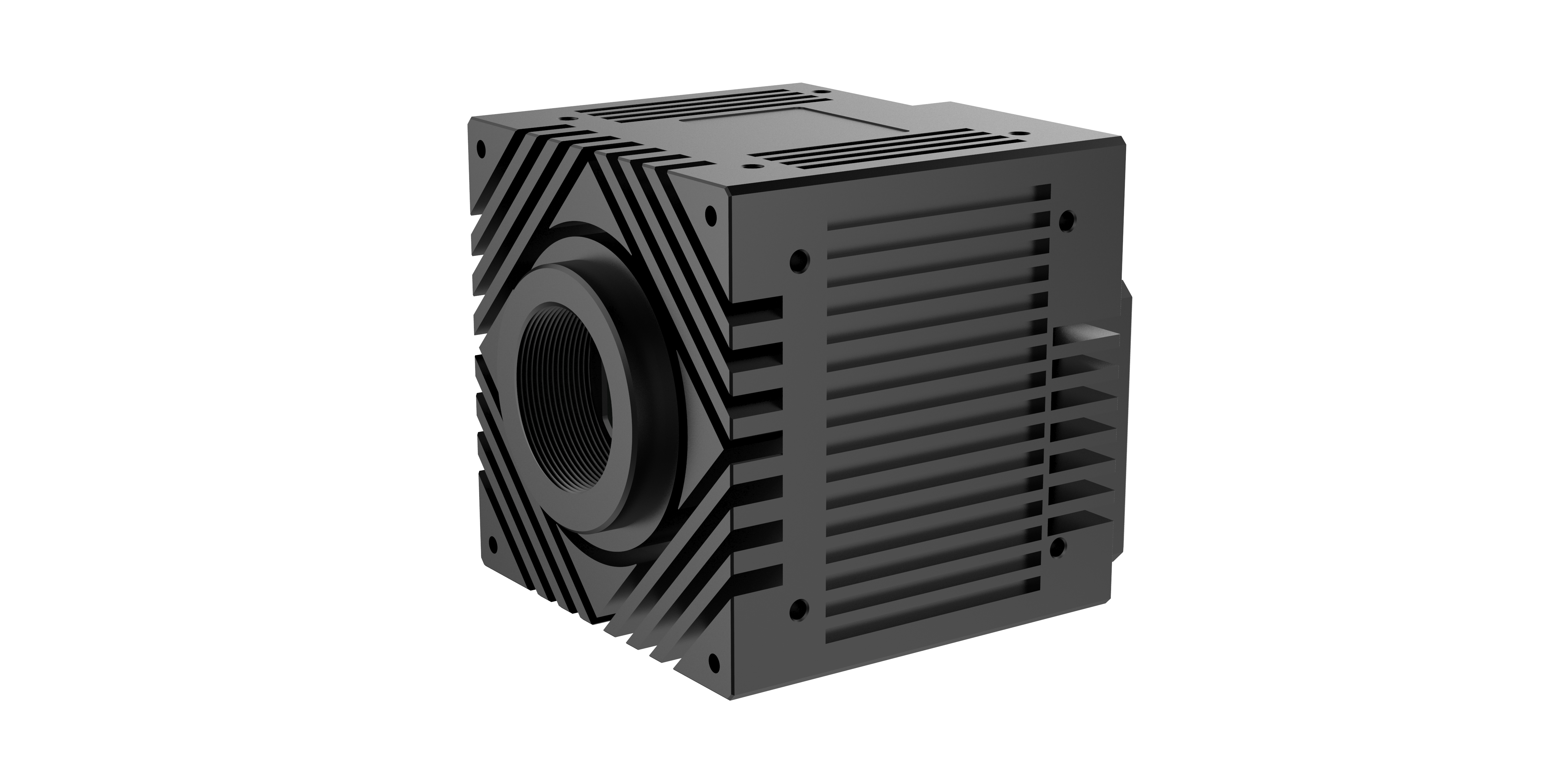

Area Scan Color Camera
51GC-MSAXG
Area Scan Color Camera with 10GigE interface, 0.51MP, Resolution 816x624,1594 FPS, IMX426 sensor
With the wide application of machine vision in various industries, a variety of high-speed, high-precision vision inspection needs have emerged, and also continue to put forward higher requirements for the resolution as well as frame rate of industrial cameras. This product is a 0.51MP Color CMOS camera equipped with IMX427 sensor and global shutter to meet customer demand for high frame rate and high resolution. It is suitable for solder joint inspectio, plastic bottle inspection, packaging inspection, and scratch inspection.
Features
·Adopting standard 10GbE interface design, Super Category 6 cable can achieve stable communication.; ·Compared with the CameraLink interface with the capture card, the cost is greatly reduced; ·The longest transmission distance up to 100 metres, industrial wiring is no longer constrained: backward compatible with Gigabit networ; ·Effective bandwidth of 1200MByte, 10 times that of Gigabit network, greatly reducing the image transmission time and delay; ·Supports GigEVision, GenlCam standards and the same SDK as Gigabit cameras, shortening the customer development cycle;
Parameter
Model
51GC-MSAXG
Sensor
1/1.7" CMOS
Sensor type
IMX426
Camera Type
Color
Pixel size
9.0um x9.0um
Effective pixels
0.5MP
Resolution @ frame rate
exposure mode
Global exposure
Sensitivity
4050mv 1/30s
GPIO
2 input and 2 output, 1 way configurable input and output, supports trigger and strobe sync modes
Output pixel width
12bit
AD width
12bit
Frame buffer
1GB
Time of exposure
0.0008-838.86ms
Maximum gain (multiple)
125
User EEPROM
2KB
Frequency output format
Bayer RG 8/12bit
Visual standard protocol
GigE Vision、GenICam
Lens interface
C-Mount
Data interface
10 Gigabit copper cable 10GBase-T, compatible with 100M/1G/2.5G/5G
Power supply
24V
Power
<12W
Boundary dimension
64x64x52.7(mm)(Lens base and rear shell interface are not included)
Weight
<350g
Working Temperature
0~50℃
Working Humidity
20~80%(No Condensation)
Storage temperature
-30~60℃
Storage humidity
20~95%(No Condensation)
Drive program
Directshow components Halcon special components Labview dedicated drive OCX components TWAIN components
Programming Language
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Operating system
WINXP,WIN7/8/1032&64-bitsystems,LinuxandARMLinuxdriversandAndroidplatformdrivers
Programming language
Support for any size ROI custom resolution, multiple exposure, contrast and gamma adjustment, saturation adjustment, white balance correction, black dot leveling correction, custom dead end coordinate correction,ISP image processing acceleration, 3D noise reduction, custom LUT table,frame rate adjustment, custom camera name, and more

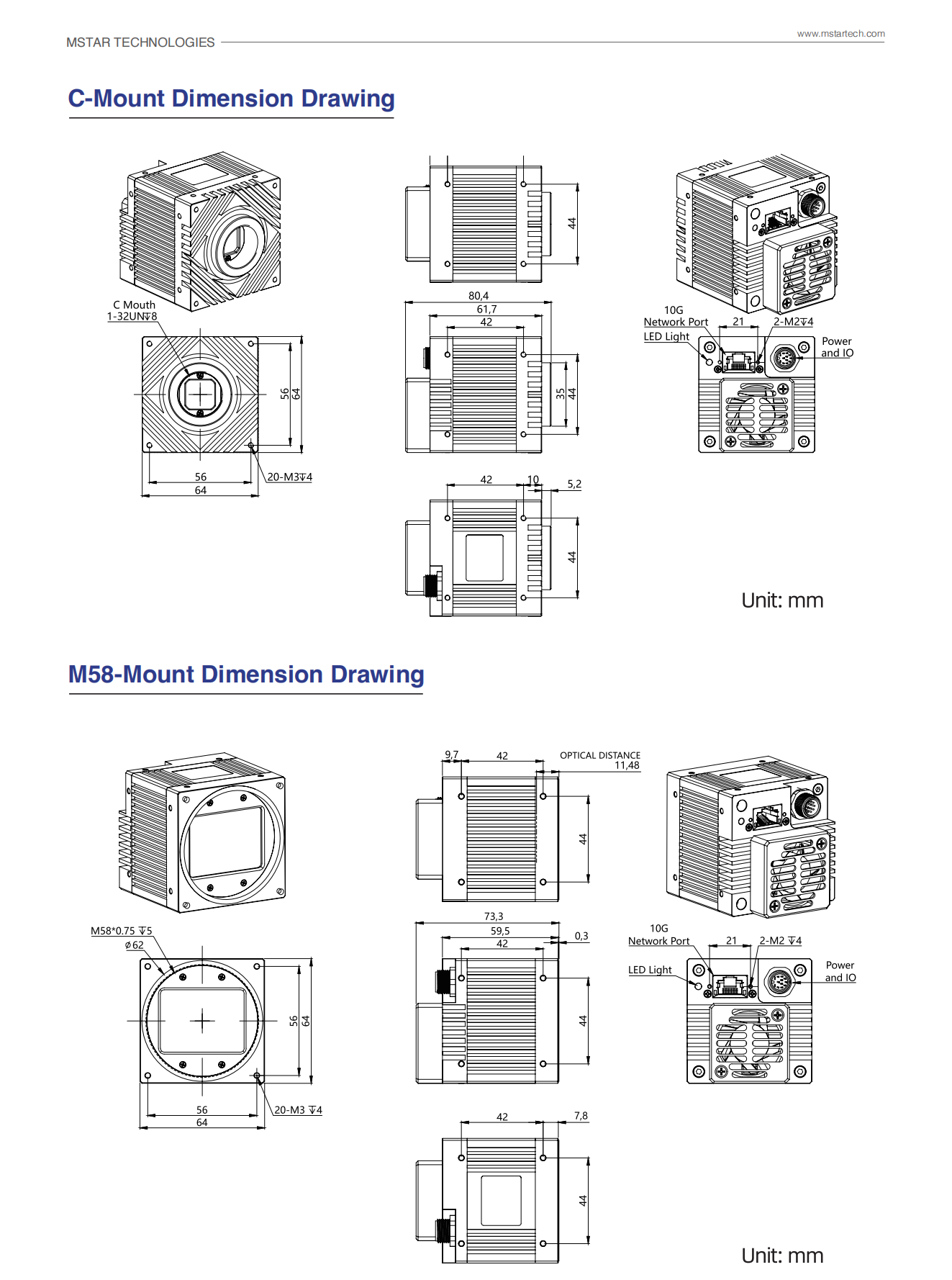

Dimension
