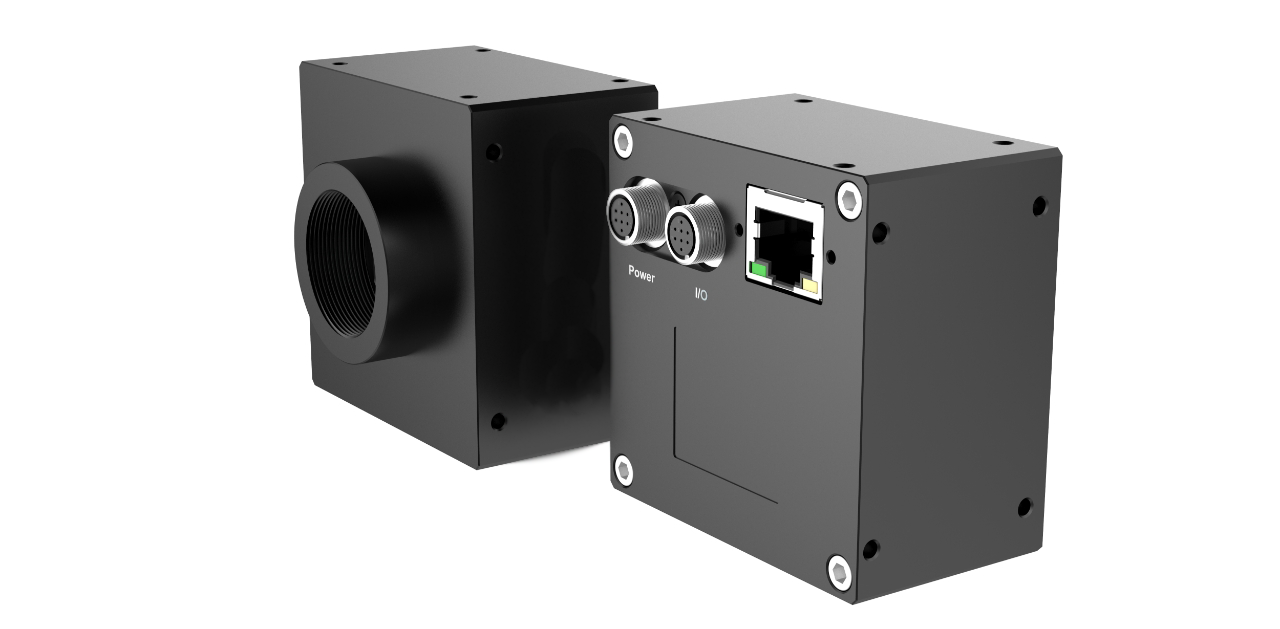

Area Scan Mono Camera
1606GM-MSAGEC
Area Scan Mono Camera with GigE interface, 16 MP, Resolution 4112x4112, 7.25 FPS, OEM sensor
This area scan camera is compatible with GigE Vision and GenICam standards, ensuring a high degree of compatibility with a wide range of industrial applications and vision systems. The product is a 16MP Mono CCD camera equipped with a OEM sensor and a global shutter. The camera is perfectly compatible with HCvisionQuick and other mainstream vision software such as LabVIEW, Halcon, and VisionPro. It is widely used in various fields, including defect inspection, dimension measurement, and crack inspection.
Features
·Special packet retransmission technology, to ensure reliable data transmission;
·With hardware image processing acceleration, reduce the host side of the CPU occupancy rate;
·Support external trigger and flash synchronization, up to seven GPIOs, all optically isolated;
·Pixel from 300,000 pixels to 65 million pixels, CCD and CMOS optional;
·Support multiple cameras working simultaneously, unlimited number, can be arbitrarily networked;
·Excellent SDK design, as simple as using a USB camera, plug and play;
·Compatible with vision standard, free drive directly support HCvisionquick,Halcon, VisionPro and other software;
·Gigabit network interface, 100 meters long-distance stable transmission, support POE power supply (optional).
Parameter
Model
1606GM-MSAGEC
Sensor
4/3" CMOS
Camera type
Mono
Pixel size
3.5umx3.5um
Effective pixels
16MP
Resolution @ frame rate
4112x4112 [email protected]
Exposure mode
Frame exposure
Dynamic range
68dB
Sensitivity
3.9V/lux·s
GPIO
1 way optical isolation input, 1 way optical isolation output; optional 3 inputs and 4 outputs
Output pixel width
12bit
AD width
14bit
Frame buffer
256MB
Exposure time range
0.0327~548614.9ms
Maximum gain (multiple)
16
User EEPROM
2K Bytes
Frequency output format
Mono 8/12bit
Visual standard protocol
GigE Vision、GenICam
Lens interface
Cmount
Port
GigabitNetwork
Power supply
12~24V
Power
<12W
Boundary dimension
59.5x59.5x35.5(mm)(Lens base and rear shell interface are not included)
Weight
<250g
Working temperature
0~50℃
Working humidity
20~80%(No Condensation)
Storage temperature
-30~60℃
Storage humidity
20~95%(No Condensation)
Operating system
WINXP, WIN7 / 8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers MAC OS system
Drive program
Directshow components Halcon special components Labview dedicated drive OXC components TWAIN components
Programming language
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction,ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
Dimension
