Dual Spectrum Thermal Compact Camera
IR-CAMN200W-C
Dual Spectrum Thermal Compact Camera, 2MP Visual and 256x192 IR Resolution, ≤45mK@30℃NETD, Temp Range -20℃~550℃, IP67 Casing.
The IR-CAMN200-C is developed based on a 256x192 wafer infrared module, integrating both an infrared thermal imager and a visible light camera. Its compact size enables installation in narrow spaces, offering flexible deployment options. The system provides continuous temperature data collection, analysis, and alarms, ensuring uninterrupted monitoring of critical electromechanical equipment.
Features
- Adopts 256x192 Uncooled VOxInfrared Detector
- HD 1/2.7 Inch CMOS, Resolution 1920x1080
- Web-side control, No need other APP or software to set the parameters

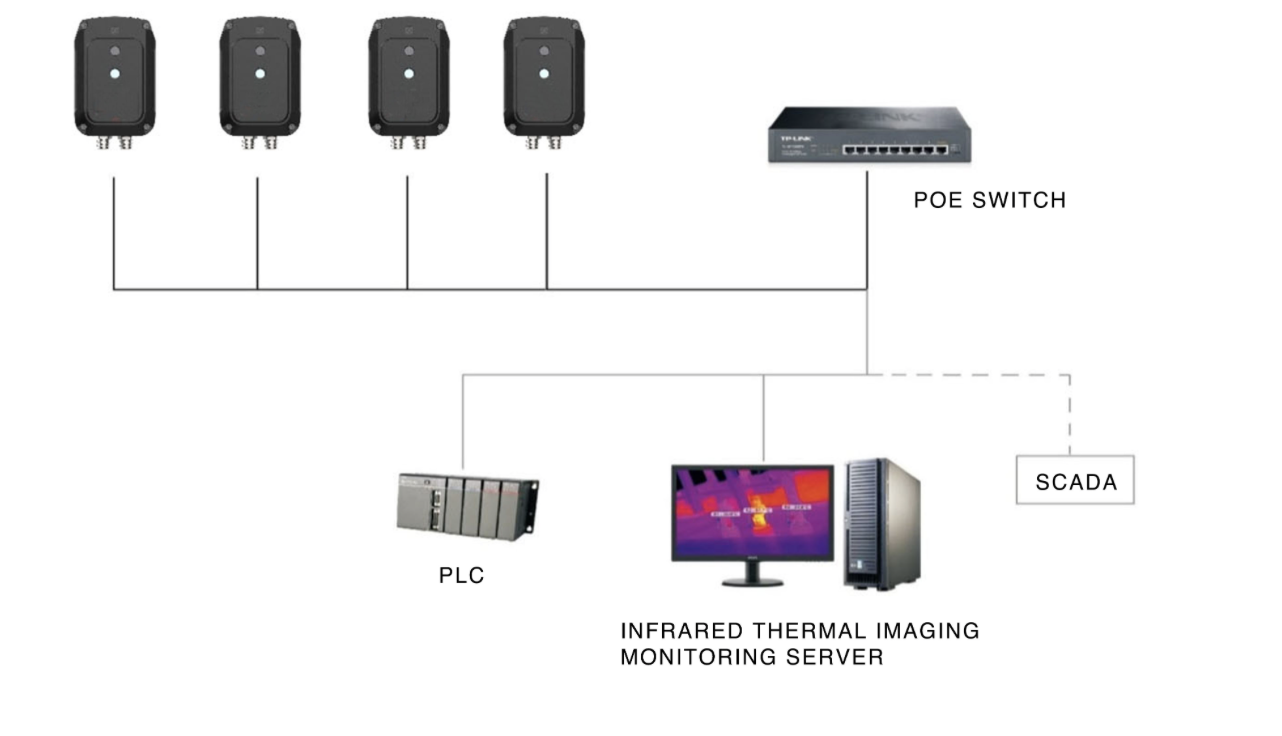

- Unified interface, compatible with Ethernet/IP standard protocol, which is conducive to networking
- Support real-time temperature measurement analysis, historical information query and export CSV report
- IP67 encapsulation, Dustproof and waterproof. Durable and stable
- Installation methods: Hoisting/Vertical Mounting/Wall Mounting/Tripod Mounting/Magnetic etc.

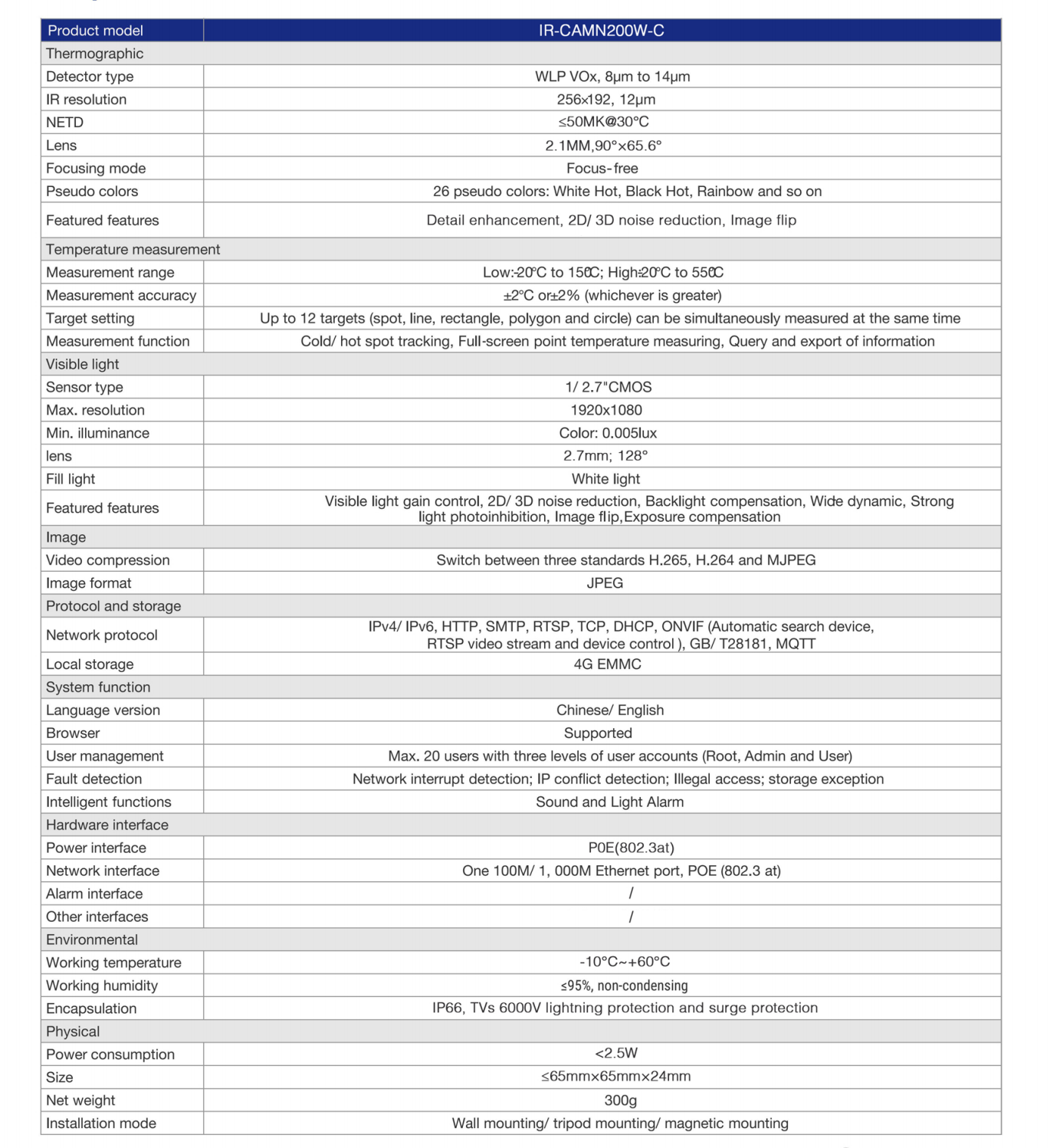

Parameters
