Background

The automotive component industry is highly diverse, with numerous companies and a wide range of products. During automotive production, component inspection is essential to ensure efficiency and safety, which are the primary goals of manufacturers. Traditional manual inspection of component defects is not only inefficient but also lacks precision control. Manufacturers often face challenges such as pin surface deformation, difficulty in identification, and the need for high precision in the production process.

Solution

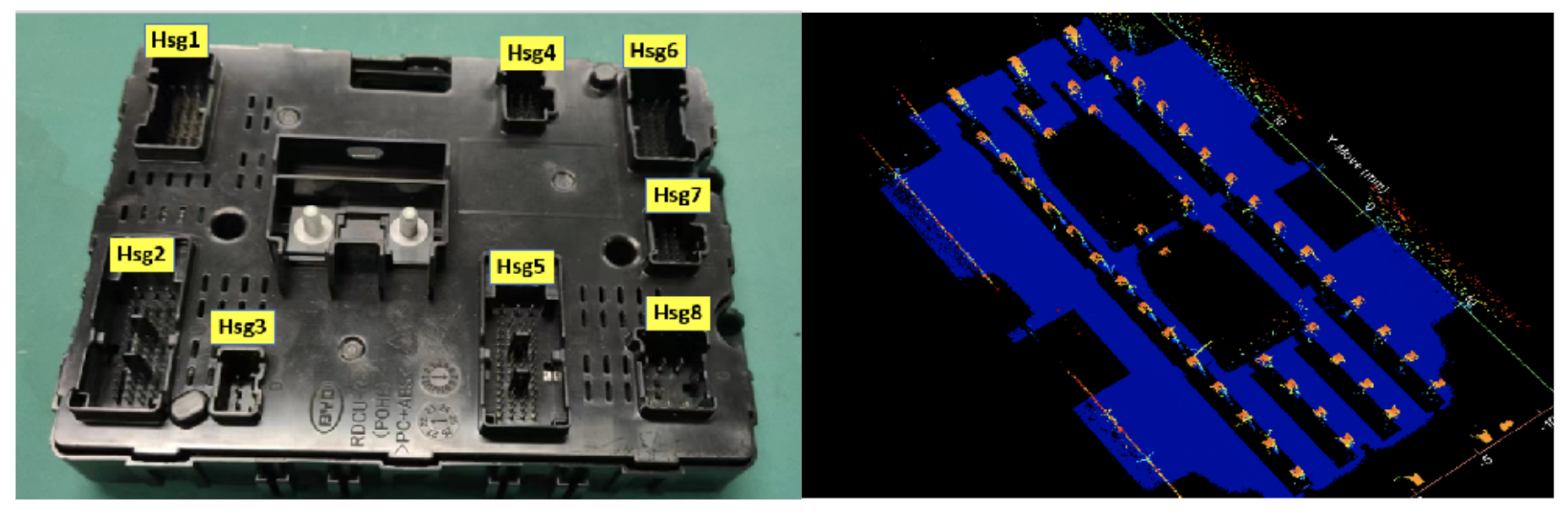

A 3D camera captures point cloud data of the product, visualized through a height color map to generate a 3D model. Height measurement tools are then used to measure the pin height, while distance tools determine whether the pins are tilted. This solution effectively addresses surface deformation and precision issues in components. It improves inspection accuracy and efficiency, ensuring that product quality meets required standards.
