Line Scan Mono Camera
164M-MSAXGI
Line Scan Mono Camera with 10GigE interface, 16384x1, 72KHz, Gpixel sensor
Aiming at the demand of line array camera for industrial production large format inspection and high speed assembly line inspection, MSTAR self-developed industrial line array camera can significantly improve the productivity and inspection accuracy in industrial inspection field. It is a 16K resolution color camera equipped with Gpixel sensor and a maximum line frequency of 72KHz. the camera is an economical product with high performance and low cost, which enhances the competitiveness of products for customers. It is widely used in a variety of applications, including density inspection, weld quality detection, and solder paste detection.
Features
·Support 1, 2, 4-way flexible combination
·16K resolution, RGB true color support 2TDI mode, line frequend 40KHz
·CXP-12 interface, the maximum effective bandwidth of data transmission 4700Mbyte,
which is 4 times of 10GbE and 12 timesof USB3.0
·Excellent SDK design,users do not need to directly operate theCXP capture card,
eliminating the tedious configurationprocess,as simple as using Gigabit network industrial cameras
·Standardised industrial-grade cable connection using HD-BNC
·Cable length up to 10-65 metres,one coaxial cable can achievethe signal trigger and power supply
·Low power consumption and fanless design ensures stability forhigh-speed motion shooting
Parameter
Model
164M-MSAPXL
Optical Dimension
81.92mm
Sensor Type
CMOS
Shutter Method
Global
Canera Type
Mono
Pixel Size
5umx5um
Effective Pixels
16384x1
Dynamic Range
66dB
AD Width
12bit
Output Pixel Width
10bits
Acquisition Mode
Continuous / Trigger / Hard Trigger
I/O Ports
1 Optical Isolation Input,
1 Optical Isolation Output,
2 RS422 Differential Signal Inputs
Maximum Gain (Multiple)
6
Exposure Time Range (ms)
0.002~50
User-Defined Data Area
64KB
Video Output Format
Mono 8 bit
Visual Standard Protocol
CoaXPress 2.1,GenICam
Lens Interface
M90 x 1.0, Flange Distance 12 ± 0.3 mm
Connection Interface
CXP12-4 (HD-BNC Interface)
Cooling Method
Heat Sink
Power Supply
DC24V/PoCXP
Power Consumption
12W@DC24V
Dimensions
110 mm x 110 mm x 49.1 mm
(excluding lens mount and rear shell interface)
Weight
<550g
Working Temperature
0~50°C
Working Humidity
20~80%
Storage Temperature
-30~60°C
Storage Humidity
20~95%
Operating Systems Supported
Windows XP, Windows 7/8/10 (32 & 64-bit),
Linux and ARM Linux Drivers,
Android Platform Drivers, macOS
Driver Program
DirectShow Components, Halcon Dedicated Components,
LabVIEW Dedicated Driver, OCX Components, TWAIN Components
Programming Languages Supported
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Additional Features
Supports Custom ROI Resolution, Contrast and Gamma Adjustment,
Saturation Adjustment, White Balance Correction, Black Level Correction,
Custom Dead Pixel Correction, ISP Image Processing Acceleration,
3D Noise Reduction, Custom LUT Table, Frame Rate Adjustment,
Custom Camera Name, And More

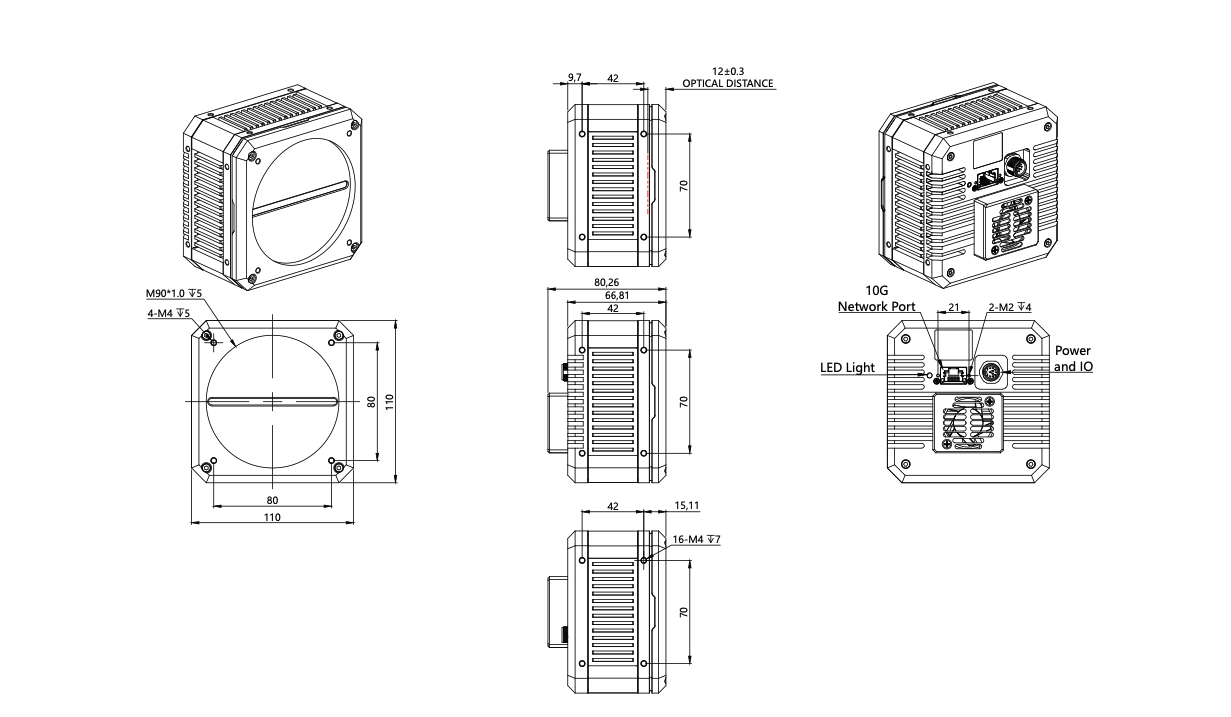

Dimension
